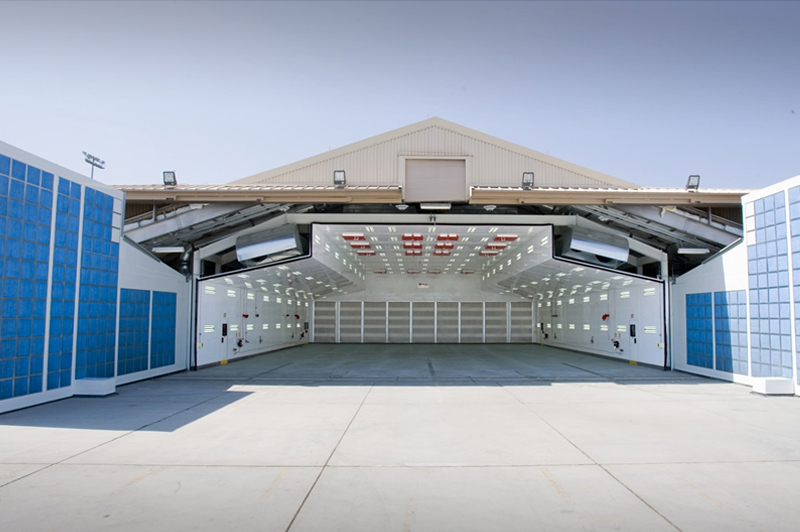

Pauli Systems aircraft paint hangar inserts enable maintenance technicians to enjoy state-of-the-art coating and repair facilities inside existing hangars. There is no need for demolition or new construction. Note the integrated structural framework of this spray booth, entirely independent of this hanger at Nellis Air Force Base.

Pauli Systems L.O. Coating & Composite
Repair Facility Brochure

Download (PDF - 3.74MB)

Get Adobe Reader



A typical spray booth System works in the following sequence:
(click on photos to enlarge)

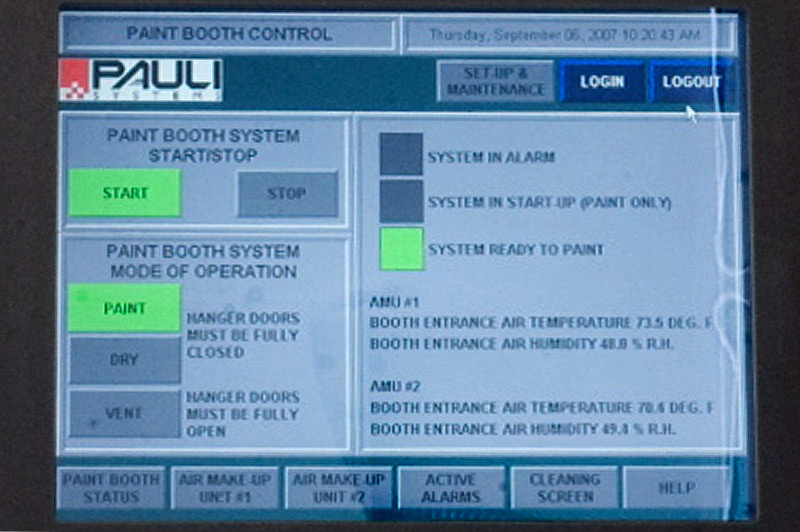

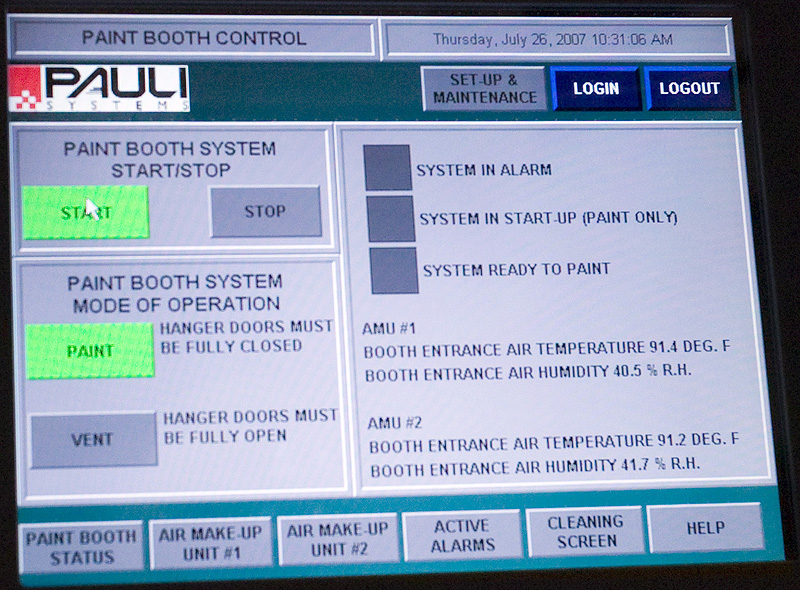

HMI Control Interface
  • Operators begin by pressing the “Start” button in the touch screen control.

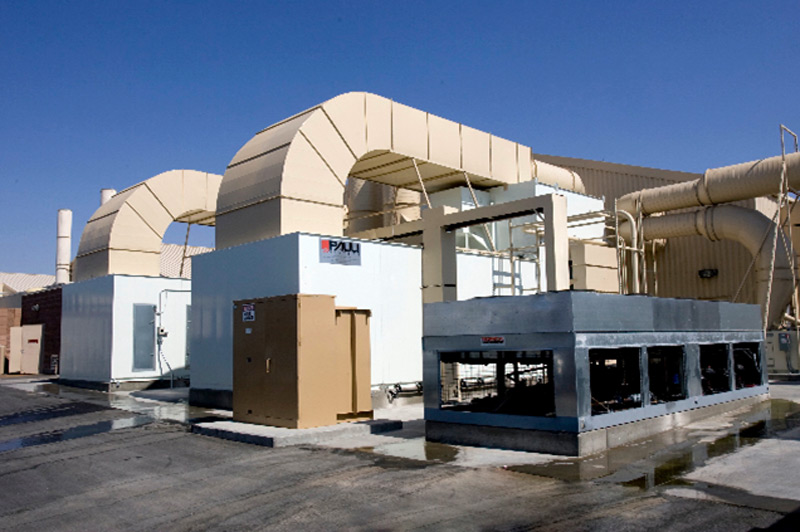

Air Makeup Unit of Paint Booth at the Military Air Base
  • The makeup air units begin the process of bringing the facility’s working chamber temperature and humidity into specified value ranges. This is accomplished by heating, cooling, humidifying or dehumidifying, as dictated by internal hanger and local atmospheric conditions. Rain or shine, night or day, winter or summer prove no obstacle to accomplishing the mission in a Pauli Systems facility.

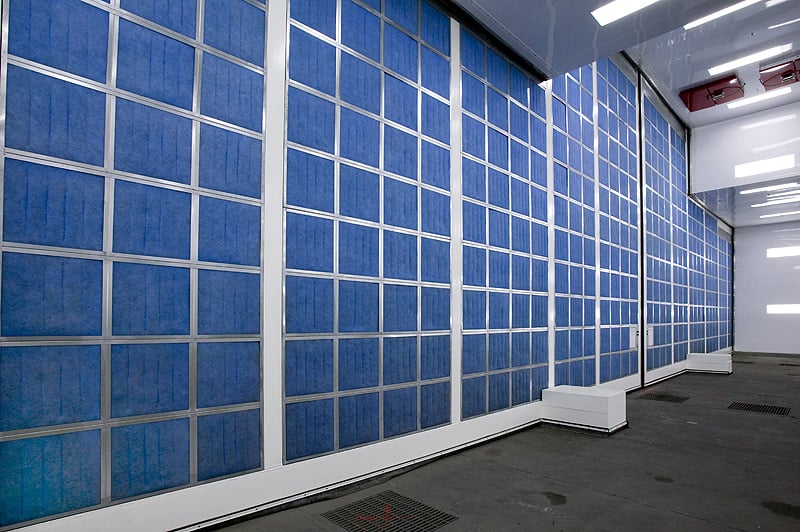

Detail of the back side of the front door of the aerospace paint booth with intake air filters in blue
  • The makeup air units deliver properly conditioned air via large ducts running along the shoulders of the facility. The air exits the ducts, is deflected downward into the four-foot thick plenum doors where it is filtered and distributed evenly through the spray booth.
The air flows along the longitudinal axis of the aircraft and out the filter bank in the rear
  • The air flows along the longitudinal axis of the aircraft and out the filter bank in the rear. The four filters are: EPA NESHAP (National Emissions Standards for Hazardous Air Pollutants — Aircraft/Aerospace) three-stage filters (blanket first stage, panel second stage, pocket third stage) plus activated carbon VOC (volatile organic compound) filters.
Aerospace Paint Booths
  • The process air, now cleaned and prior to discharge into the atmosphere, passes through energy recovery section to pre-heat or pre-cool incoming atmospheric air prior to conditioning in the makeup air units.
Aerospace Paint Booths
  • There are several cycles available to operators including standby, coating, repair, cure, and ventilation.

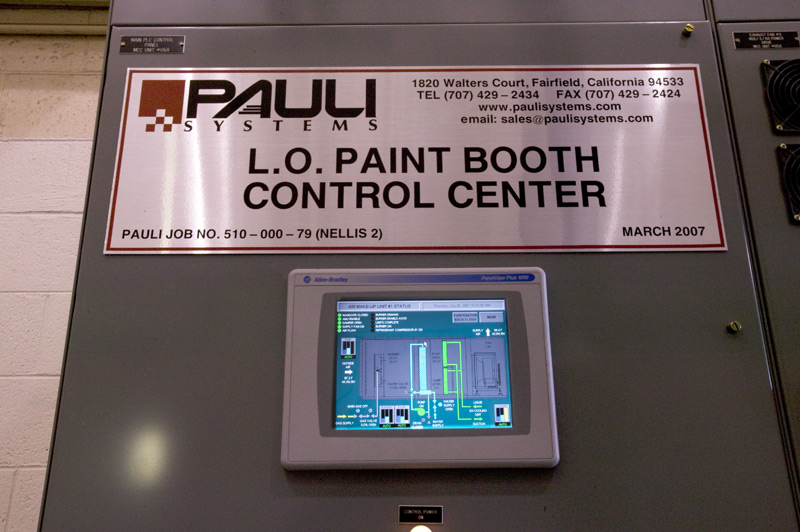

Pauli Systems aircraft paint spray booths include fully integrated motor control centers. No longer is it necessary to run outside to turn on air compressors and air dryers, then move to another area of the base to turn on breathing air systems, then yet another to... well, you get the idea. With Pauli Systems everything can be in one time-saving location.

Pauli Systems can do it all, from structural and process designs, through engineering, manufacturing, erection and Operator training. With us, there is one telephone number to call, without finger pointing at “the other guy.”

USAF Nellis Air Force Base

Watch the fire suppression system in action at the Low Observable Coating and Composite Repair Facility – USAF Nellis Air Force Base.
