RAM Series Abrasive Blast Cabinets





RAM Series is a pressure blast system ideal for production environments (air and blast media mixed at the pressure vessel / blast generator).

Tests of plastic media stripping rates of aerospace coatings run by Robert Pauli for the USAF showed that a Pauli Systems pressure blast system removed coatings at the same rate as suction blast systems [such as the Pauli DH series] using 1/8 to 1/5 the air pressure required by the suction machine. Using normal parameters of nozzle pressure a Pauli pressure blast machine will outstrip a suction machine many times over.

(Note: special paint scheme at left for USAF Corrosion Conference. Standard paint system is PSI blue.)

Click to view our brochures.

RAM 35 B Brochure

RAM 35-ACGIH Brochure



ModelProduct

Overall Cabinet Dimensions (w x d x h)

Work Compartment (w x d x h)

RAM35-ACGIH Dry Stripping Cabinet, American Conference of Government Industrial Hygienists (ACGIH) Compliant 65 x 49 x 76 in
165 x 125 x 194 cm
60 x 48 x 36 in
152 x 122 x 91 cm
RAM32 Cabinet, Reclaimer, Storage Hopper, Pressure Vessel and Dust Collector in One Compact Unit 54 x 92 x 91 in
137 x 234 x 231 cm
48 x 48 x 36 in
122 x 122 x 91 cm
RAM31-SP Shot Peening Machine 65 x 49 x 76 in
165 x 125 x 194 cm
60 x 48 x 36 in
152 x 122 x 91 cm
RAM31 Dry Stripping Cabinet 65 x 49 x 76 in
165 x 125 x 194 cm
60 x 48 x 36 in
152 x 122 x 91 cm

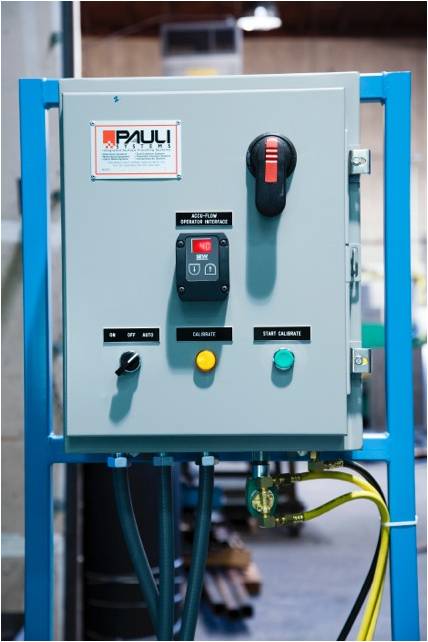

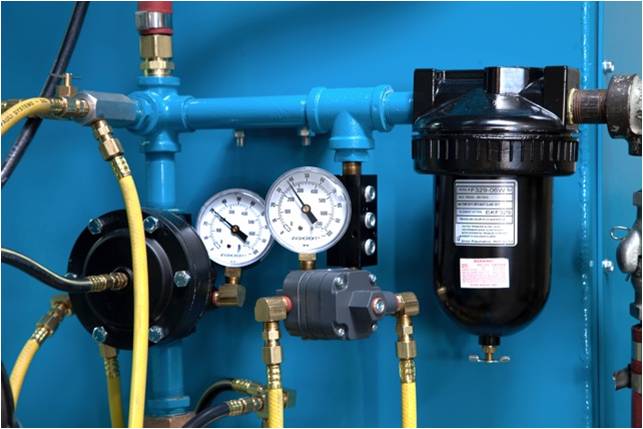

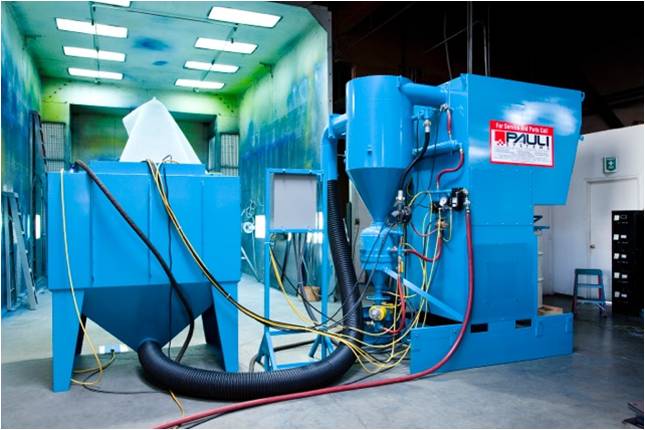

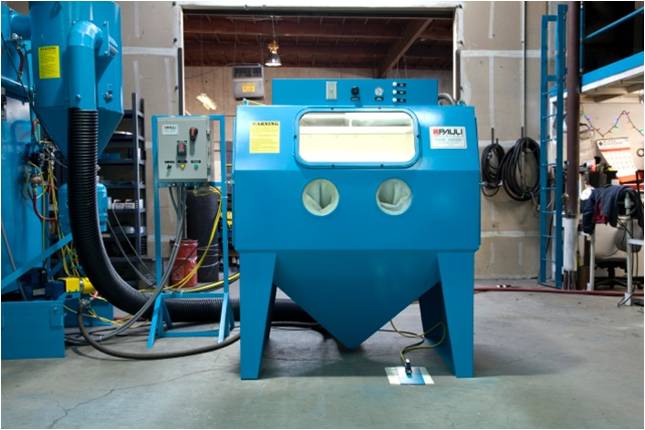

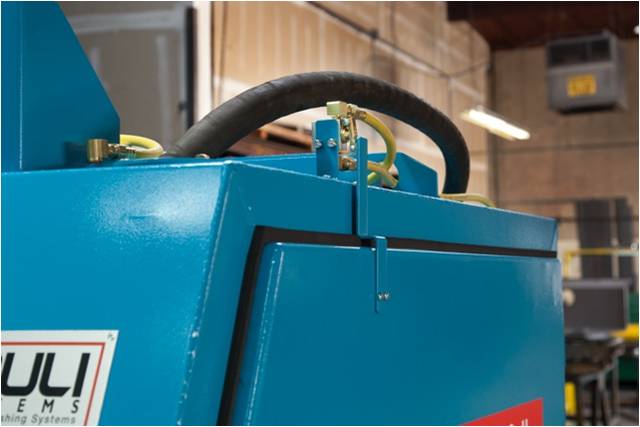

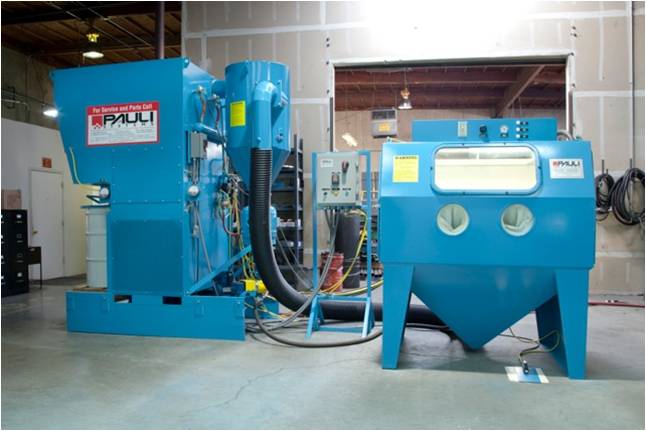

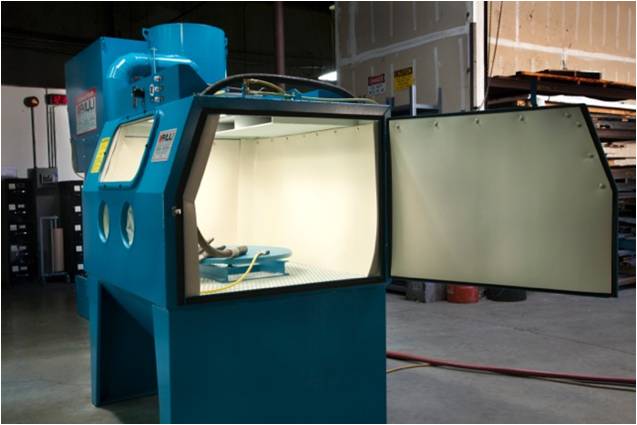

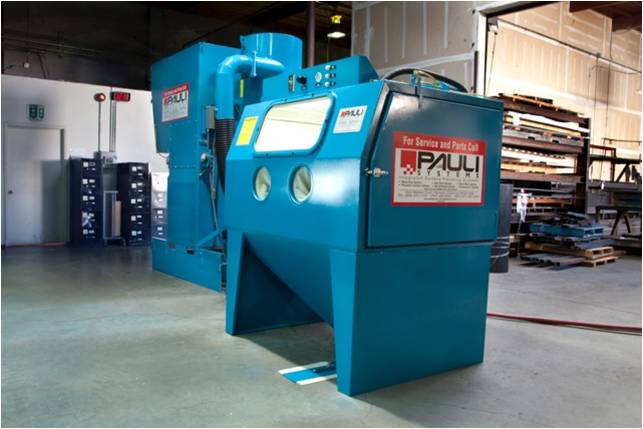

RAM (conventional paint) with AccuFlow computerized media mass flow valve

RAM (conventional paint) with AccuFlow computerized media mass flow valve

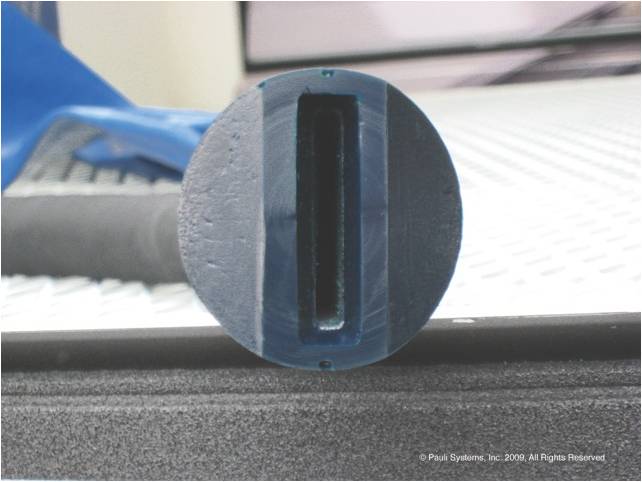

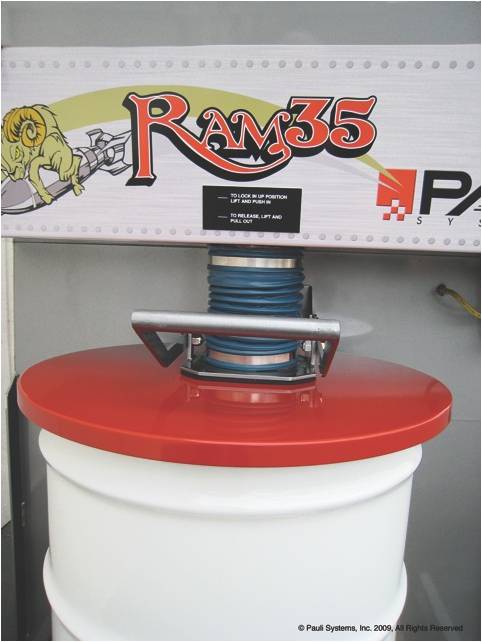

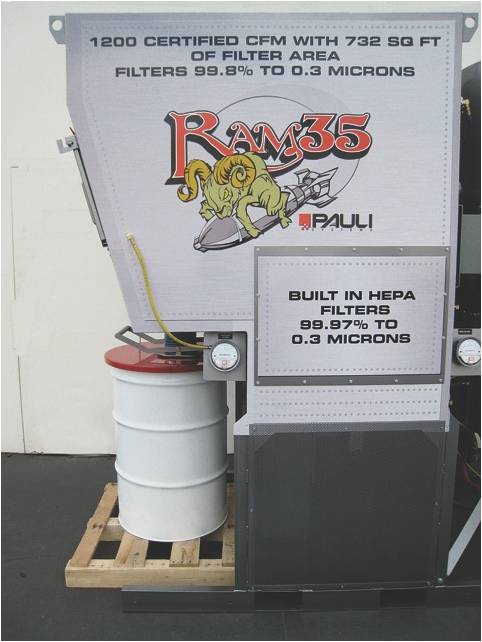

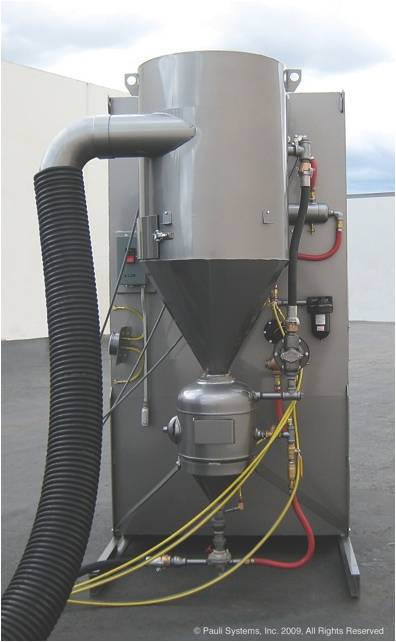

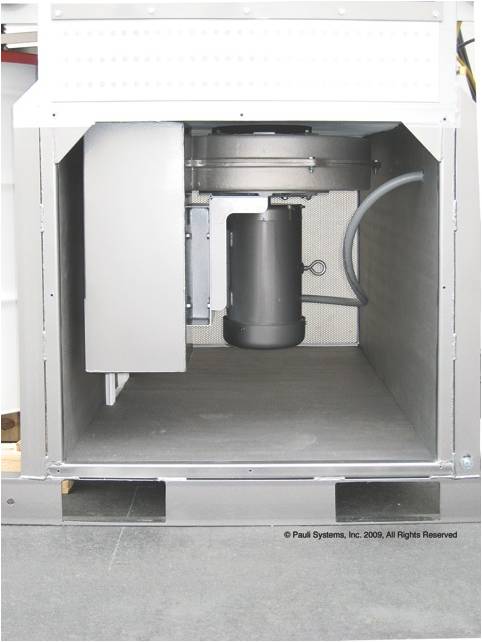

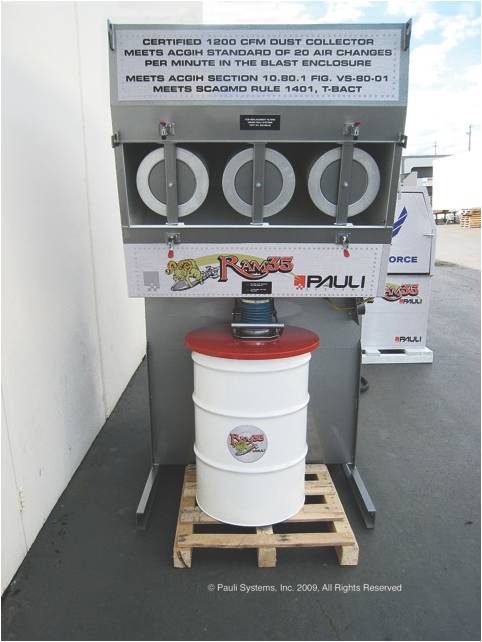

RAM 35 Cabinet small file size images of USAF promotional unit.

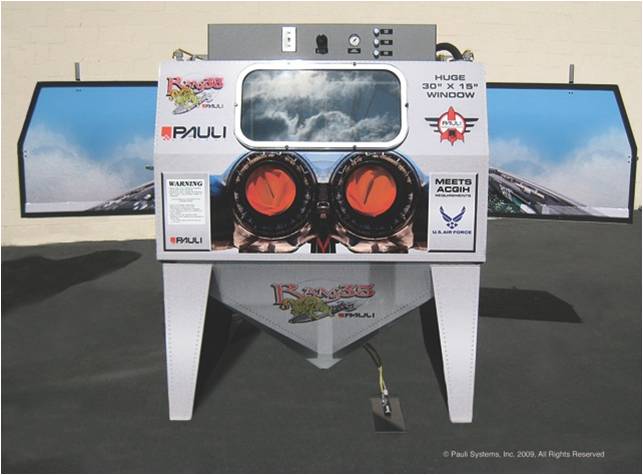

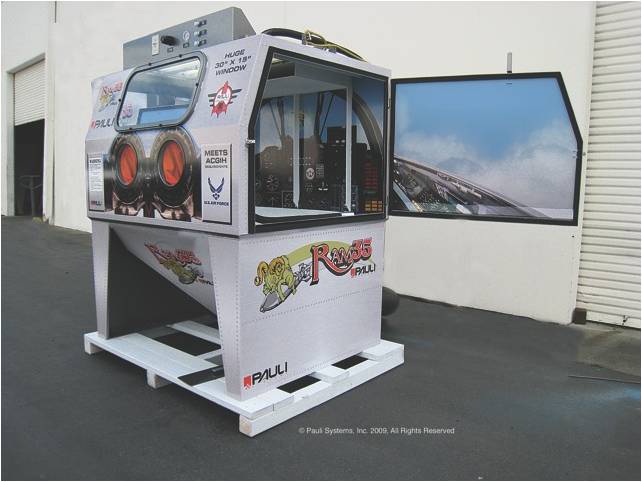

United States Air Force RAM 35 Cabinet Promotional Unit
