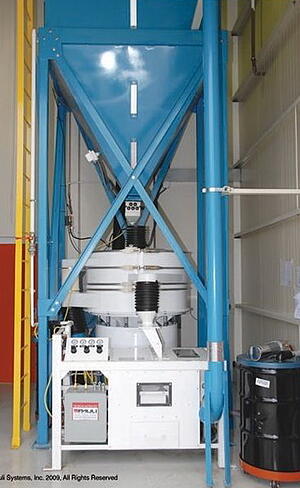

RAM DPS 3000 - High Volume Dense Particle Separator



Dense-Particle-Separator


The Reclaimable Abrasive Machine (RAM™) DPS 3000 separates and removes dense particles such as sand and metal chips from plastic or starch-based blast media.




  ·


 DOWNLOADS


   DPS3000
(PDF, 370KB)







Overview · Advantages · Product Specifications · Features · Your Application Please

Overview



Description:

  Eliminating dense contaminants from media prevents these heavier particles from causing crack and fatigue initiation sites in metallic aircraft structures and allows the user to meet aircraft manufacturers and military specifications for media cleanliness, which are 200 ppm (0.02%) and 300 ppm (0.03%) respectively.


Function:

  Dry paint stripping


Media:

  PMB (Plastic Media Blast) or Starch Media Blast


Advantages



Controls particle contamination:



In large abrasive blast rooms and aircraft hangar systems, media can become contaminated. Even with the best cyclone separators, nonferrous, nonmagnetic materials and sand can be mixed with the media. The DPS 3000 was developed lo separate good media from contaminants that can damage the surfaces being depainted.





RAM machines always reclaim media:



RAM Dry Stripping Machines have rapid and highly efficient media recovery and reclaim systems. The reclaiming process consists of aerodynamic separation via a cyclone centrifuge, a dual adjustable air wash, a vibrating screen and a magnetic separator. Paint, debris and other foreign matter are removed and routed to disposal containers. Cleaned media is then ready for reuse. Although this system has been highly efficient for most operations, it will not remove nonmagnetic dense particles like sand that can occur in airframe hangar and large booth systems. in such systems, large objects are cleaned using an open blast nozzle with the abrasive falling to the floor. the possibility of non magnetic, non-ferrous dense particle contamination of the media being recovered from the floor has led to the development of the DPS 3000.





When super-clean recycled media is needed:

  The DPS 3000 provides high volume dense particle separation. The unit is a processing device in which media continuously enters a chamber where it is mixed with air to form a fluidized dry mixture. Dense particles such as sand and metal chips sink to the bottom of the cleaning chamber. A specially designed gate mechanism on the bottom of the chamber is activated intermittently to discharge heavy particles. Extensive testing has proven the DPS 3000 is capable of removing 80% and more of the dense particles from typical plastic media. For example, media contaminated to the level of 200 ppm (0.02%) when processed in the DPS 3000 exits with a contamination level of only 40 ppm (0.004%).


Product Specifications



Height1

  17 ft 8 in
5.4 m


Floor Space Required

  12 ft x 9 ft (approximate)
3.7 x 2.7 m


Air Consumption

  80 CFM at 100 psi
2.3 CMM at 7 bar


Recovery Cyclone, Air Wash and Storage Rate

  100 lb/minute
45 kg/min


Dense Particle Removal Processing Rate2

  40 lb/minute (2,400 lb/hour)
18 kg/min (1,100 kg/hr)


Electrical Circuit Required

  20 amp at 460 volt, 3 phase, 60 Hz
40 amp at 230 volt, 3 phase, 60 Hz

1 Can vary to fit location or to accommodate different size storage hoppers.
2 Varies with media density and size.

Features


• Lo Profile loading hopper
• 3000 lb (1,360 kg) bulk storage hopper with ladder and platform
• 900 CFM (25.5 CMM) cyclone separator and air wash
• Airlock feeder valve
• 900 CFM (25.5 CMM) dust collector with automatic bag shaker
• 30" (76 cm) vibratory screen separator, dual screen three deck
• 900 CFM (25.5 CMM) high static blower with 7 1/2 HPTEFC motor (10 kw)
• Media filter (dense particle removal section)
• Control panel with fused disconnect switch in NEMA 12 enclosure
• Level Sensor for bulk hopper overfill protection



Your Application Please


The RAM DPS 3000 is available to recycle plastic or starch-based media used to clean pans and strip coatings from aircraft, auto, truck, railcar and bus bodies. For further information about the DPS 3000, contact Pauli Systems, Inc. We will be pleased to provide a recommendation for your application.
